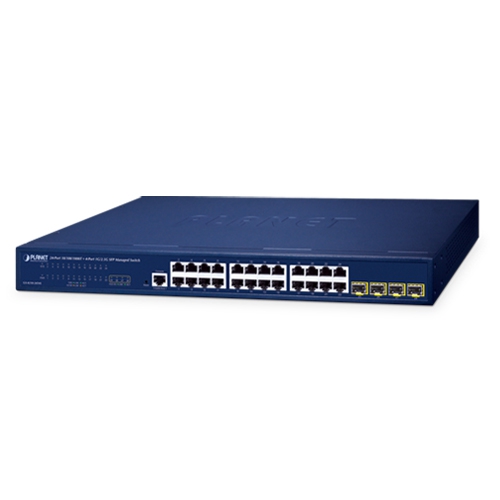

PLANET IPv4/IPv6, 24-Port 10/100/1000T + 4-Port 1G/2.5G SFP L2/L4 SNMP Managed Gigabit Ethernet Switch, supports ERPS Ring, Cloud-based CloudNMS, MQTT
Šifra proizvoda
O_GS-4210-24T4SBrand
PLANETModel
-Tip
-PartNo
4711605285483EAN
4711605285483Jamstvo
2 god.Dostupnost
Dobavljivo (2-4 dana)
206,25 Eur Najniža cijena u posljednjih 30 dana: 206,25 Eur
Cijena 10.09.2026.: 198,75 Eur
Povrat robe moguć unutar 14 dana isključivo za fizičke osobe po odredbama na našim stranicama
Hardware Specifications
- Copper Ports: 24× 10/100/1000BASE
- T RJ45 auto
- MDI/MDI
- X ports
- SFP/mini
- GBIC Slots: 2× 100/1000BASE
- X SFP interfaces, supporting 100/1000Mbps dual mode
- Console: 1× RS232
- to
- RJ45 serial port (115200, 8, N, 1)
- Reset Button: System factory default
- Switch Architecture: Store
- and
- Forward
- Switch Fabric: 52Gbps / non
- blocking
- Switch Throughput@64 bytes: 38.6Mpps @64 bytes
- MAC Address Table: 8K entries
- Shared Data Buffer: 4.1 megabits
- Flow Control:
* IEEE 802.3x pause frame for full
- duplex
* Back pressure for half
- duplex
- Jumbo Frame: 9216 bytes
- Reset Button: > 5 sec: Factory default
- LED (System):
* Power (Green)
* 10/100/1000T RJ45 Interfaces (Port 1 to Port 24)
* 1000 LNK / ACT (Green), 10/100 LNK/ACT (Orange)
* 100/1000Mbps SFP Interfaces (Port 25 to Port 26)
* 1000 LNK / ACT (Green), 100 LNK/ACT (Orange)
- Power Requirements: 100~240V AC, 50/60Hz, 0.8A (max.)
- Power Consumption / Dissipation: Max. 14 watts / 47 BTU
- Dimensions (W×D×H): 445×207×45 mm (1U height)
- Weight: 2.1kg
- ESD Protection: Yes
- Enclosure: Metal
Layer 2 Functions
- Port Mirroring:
* TX / RX / Both
* Many
- to
- 1 monitor
- VLAN:
* 802.1Q tagged
- based VLAN
* Up to 256 VLAN groups, out of 4094 VLAN IDs
* 802.1ad Q
- in
- Q tunneling (VLAN stacking)
* Voice VLAN
* Protocol VLAN
* Private VLAN (Protected port)
* GVRP
* Management VLAN
- Link Aggregation:
* IEEE 802.3ad LACP and static trunk
* Supports 8 groups of 8
- port trunk
- Spanning Tree Protocol:
* STP, IEEE 802.1D Spanning Tree Protocol
* RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
* MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
* STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- IGMP Snooping:
* IPv4 IGMP (v2 / v3) Snooping
* IGMP Querier
* Up to 256 multicast groups
- MLD Snooping: IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups
- Access Control List:
* IPv4/IPv6 IP
- based ACL / MAC
- based ACL
* IPv4/IPv6 IP
- based ACE / MAC
- based ACE
- QoS:
* 8 mapping ID to 8 level priority queues
** Port Number
** 802.1p priority
** DSCP / IP Precedence of IPv4 / IPv6 packets
* Traffic classification based, strict priority and WRR
* Ingress / Egress Rate Limit per port bandwidth control
- Security:
* IEEE 802.1X port
- based authentication
* Built
- in RADIUS client to co
- operate with RADIUS server
* RADIUS / TACACS+ authentication
* IP
- MAC port binding
* MAC filtering
* Static MAC address
* DHCP snooping and DHCP Option82
* STP BPDU guard, BPDU filtering and BPDU forwarding
* DoS attack prevention
* ARP inspection
* IP source guard
* Storm control support
** Broadcast / Unknown
- Unicast / Unknown
- Multicast
Management Functions
- Basic Management Interfaces:
* RJ45 Console / Web browser / Telnet / SNMP v1, v2c, v3
* Firmware upgrade by HTTP / TFTP protocol through Ethernet network
* Configuration upload / download through HTTP / TFTP
* Remote / Local Syslog
* System log
* LLDP protocol
* SNTP
* PLANET Smart Discovery Utility
- Secure Management Interfaces: HTTPs, SNMP v3
- SNMP MIBs:
* RFC 3635 Ethernet
- like MIB
* RFC 2863 Interface Group MIB
* RFC 2819 RMON (1, 2, 3, 9)
* RFC 1493 Bridge MIB
Standards Conformance
- Regulation Compliance: FCC Part 15 Class A, CE
- Standards Compliance:
* IEEE 802.3 10BASE
- T
* IEEE 802.3u 100BASE
- TX / 100BASE
- FX
* IEEE 802.3z Gigabit SX/LX
* IEEE 802.3ab Gigabit 1000BASE
- T
* IEEE 802.3x Flow Control and Back pressure
* IEEE 802.3ad Port Trunk with LACP
* IEEE 802.1D Spanning Tree protocol
* IEEE 802.1w Rapid Spanning Tree protocol
* IEEE 802.1s Multiple Spanning Tree protocol
* IEEE 802.1p Class of Service
* IEEE 802.1Q VLAN Tagging
* IEEE 802.1x Port Authentication Network Control
* IEEE 802.1ab LLDP
* RFC 768 UDP
* RFC 793 TFTP
* RFC 791 IP
* RFC 792 ICMP
* RFC 2068 HTTP
* RFC 1112 IGMP version 1
* RFC 2236 IGMP version 2
* RFC 3376 IGMP version 3
* RFC 2710 MLD version 1
* RFC 3810 MLD version 2
Environment
- Operating:
* Temperature: 0
- 50 degrees C
* Relative Humidity: 5%
- 95% (non
- condensing)
- Storage:
* Temperature:
- 10
- 70 degrees C
* Relative Humidity: 5%
- 95% (non
- condensing)
