Aten 16-Port USB 3.0 4K DisplayPort KVM Switch
Šifra proizvoda
O_14-01-7210Brand
ATENModel
-Tip
-PartNo
4719264649264EAN
4719264649264Jamstvo
2Dostupnost
Po narudžbi
1.749,50 Eur Najniža cijena u posljednjih 30 dana: 1.749,50 Eur
Povrat robe moguć unutar 14 dana isključivo za fizičke osobe po odredbama na našim stranicama

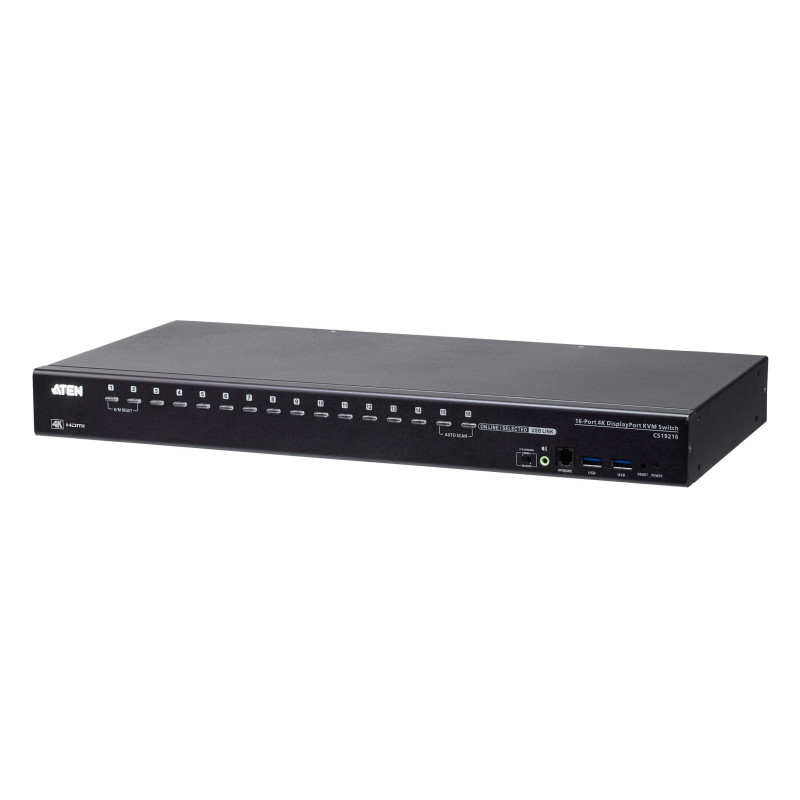

- The ATEN CS19216 16
- Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal
- clear visuals.
- To meet the needs of easy expansion and flexibility, the CS19216 can be cascaded to two levels to control up to 256 computers from a single console. Furthermore, the CS19216 supports multi
- display function by stacking up to eight CS19216 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.
- With two patented ATEN technology – Video DynaSync and EDID Expert, the CS19216 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot
- up display problems.
- Besides, the CS19216 comes with a built
- in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user
- friendly port selection methods, the C19216 offers pushbuttons, hotkeys, RS
- 232 commands, and OSD with newly
- designed UI, bringing effortless and intuitive operations.
- To eliminate security concern, a two
- level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19216 is ideal for server room/computer room management applied in industries with requirements for high
- quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.
Specifications
Computer Connections
- Direct: 16
- Maximum: 256 (via Cascade)
- Port Selection: OSD, Hotkey, Pushbutton, RS
- 232Commands
Connectors
- Console Ports
• 1 x DisplayPort Female
• 1 x HDMI Female (Black)
• 2 x USB Type A Female
• 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
- KVM Ports
• 16 x DisplayPort Female
• 16 x USB3.1 Gen1 Type B Female (Blue)
• 16 x 3.5mm Audio Jack Female (Green)
- Firmware Upgrade : 1 x RJ11 Female (Black)
- Power: 1 x DC Jack
- USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front)
Switches
- Port Selection: 16 x Pushbutton
- Reset: 1 x Semi
- recessed Pushbutton
- Firmware Upgrade Recovery: 1 x Slide Switch
LEDs
- On Line /Selected: 16 (Orange)
- Power: 1 (Green)
- USB Link : 16 (Green)
Emulation
- Keyboard / Mouse USB
Video
- DisplayPort: 4096 x 2160 60Hz; HDMI: 4096 x 2160 60Hz
Scan Interval
0 – 255 seconds (default: 5 secs.)
Power Consumption
- DC12V:26.66W:175BTU
Environmental
- Operating Temperature: 0 – 40°C
- Storage Temperature:
- 20 – 60°C
- Humidity: 0 – 80% RH, Non
- condensing
Physical Properties
- Housing: Metal
- Weight: 3.54 kg ( 7.8 lb )
- Dimensions (L x W x H): 43.24 x 21.43 x 4.40 cm (17.02 x 8.44 x 1.73 in.)
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
