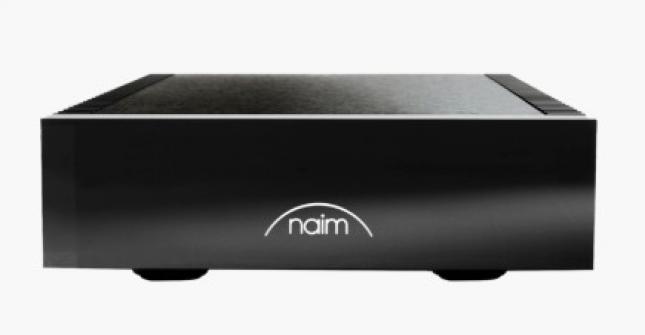

Product type : Switchable MM/MC phono stage with MC load adjustment
THD+N : MM: <0.005% ref 50mV input / MC (low & high gain): <0.005% ref 1.5mV input
Analogue gain :
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable)
Analogue inputs :
MM: -2dB at 20Hz and -3dB at 14Hz (Partial)
Analogue outputs :
Max output signal: 8 Vrms
Power supply inputs : Type 1
IEC Cut : (Partial) - 2dB at 20Hz and -3dB at 14Hz
Crosstalk - Phono : MM: >75dB
Listening height :
MM: 22dB ref 5mV input
MC: 23dB ref 0,5mV input low; 17dB ref 0,5mV high setting
Input Overload : 8.2 V RMS
Charging :
MM: 47kΩ and 100pF
MC (low & high gain):
16 selectable resistive values:
1 000 Ω, 600 Ω, 430 Ω, 330 Ω, 250 Ω, 215 Ω, 185 Ω,165 Ω,150 Ω, 140 Ω, 125 Ω, 115 Ω, 105 Ω, 100 Ω, 90 Ω, 85 Ω
16 selectable capacitive values:
100 pF, 400 pF, 700 pF, 1000 pF, 1300 pF, 1600 pF, 1900 pF, 2200 pF, 2500 pF, 2700 pF, 3100 pF, 3400 pF, 3700 pF, 4000 pF, 4300 pF, 4600 pF
Phono gain :
MM: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable)
RIAA Accuracy : MM: +/-0.1dB
